Video Format
270 Mbps、 1.5 Gbps、 3 Gbps、 6 Gbps、 12 Gbps SDI
270 Mbps DVB-ASI
Format agnostic、 125 Mbps - 12 Gbps

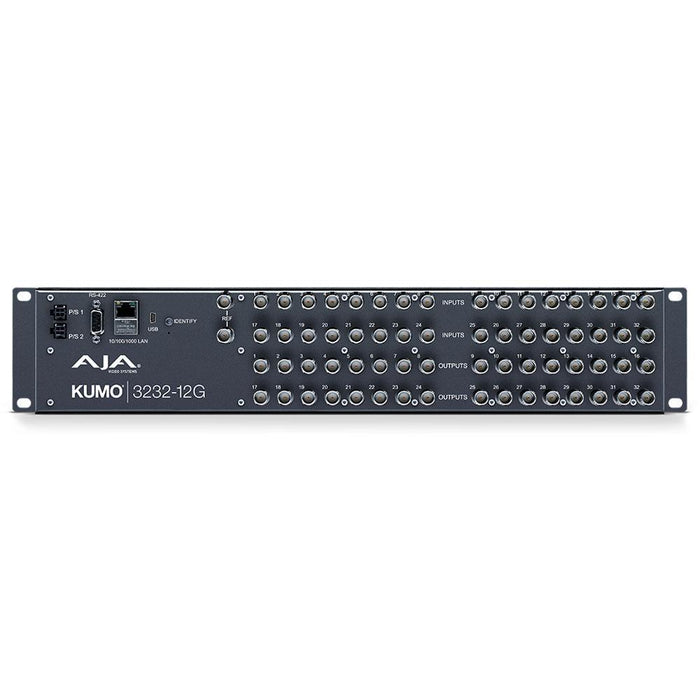

Video Input Digital
12G-SDI Inputs
32x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
Video Output Digital
12G-SDI Outputs
Noninverting
32x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
Ancillary Data
Passes all SDI embedded ancillary data including audio
Salvo
Up to 8 Salvos can be configured and saved in each KUMO router
Cable Equalization
(Belden 1694A)
12 Gbps, up to 70m
6 Gbps, up to 120m
3 Gbps, up to 190m
1.5 Gbps, up to 195m
270 Mbps, up to 405m
Automatic operation
Reclocking
270 Mbps、 1.483 Gbps、 1.485 Gbps、 2.967 Gbps、 2.970 Gbps、 5.934 Gbps、 5.940 Gbps、 11.868 Gbps、 11.880 Gbps - Auto Select
All other rates are passed through and not reclocked
Switching Modes
Single、 Dual、 and Quad Link modes
Switches in vertical blanking per SMPTE RP-168
Control Panel Compatibility
AJA KUMO CP - 1RU X-Y Ethernet control panel
AJA KUMO CP2 - 2RU X-Y Ethernet control panel
Reference Input
External、 2x BNC
Looping、 nonterminating
Blackburst or tri-level sync
Network Interface
1x RJ-45、 10/100/1000 Ethernet
Supports AJA KUMO Ethernet control panels、 direct connect or networked
Grass Valley Native Protocol
Embedded web server for remote control
USB Interface
1x Mini-USB for IP configuration
Serial Interface
1x DB-9 Female, RS-422
Grass Valley Native Protocol
9-pin D-connector pinout is as follows:
| 1 | GND |
| 2 | TX- |
| 3 | RX+ |
| 4 | GND |
| 5 | No Connection |
| 6 | GND |
| 7 | TX+ |
| 8 | RX- |
| 9 | GND |
| Shell | GND |
Size (w x d x h)
(441.96 x 39.12 x 88.9 mm)
Power
10-14VDC regulated, 20W typ, power supply required, included with purchase
AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
