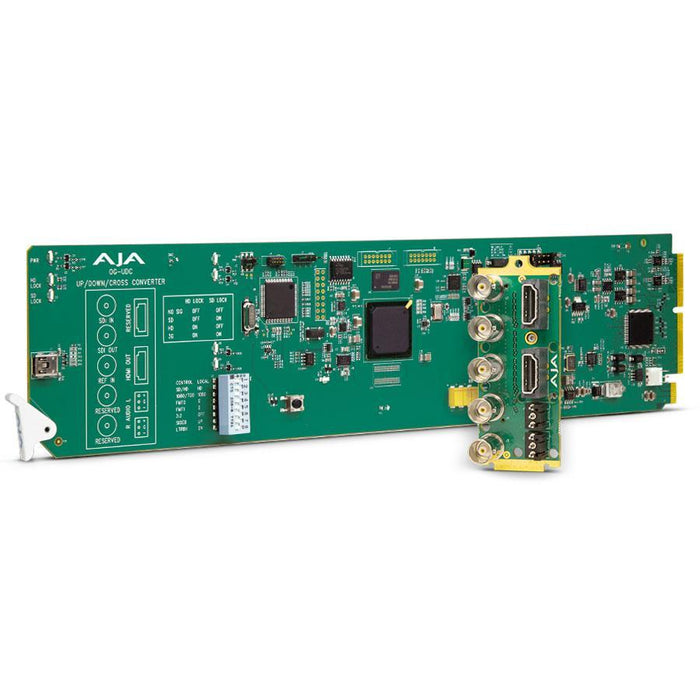

Video Formats
■2K 2048 x 1080p
■2K
2048 x 1080PsF
■HD
1920 x 1080p
■HD
1920 x 1080PsF
■HD
1920 x 1080i
■HD
1280 x 720p
■SD
720 x 625i
■SD
720 x 576i
■SD
720 x 480i
Video Input Digital
1x 3G-SDI BNC、SMPTE-259/292/372/424
■2K
2048 x 1080p 23.98、24、25、29.97、30、50、59.94、60
■2K
2048 x 1080PsF 23.98、24、25、29.97、30
■HD
1920 x 1080p 23.98、24、25、29.97、30、50、59.94、60
■HD
1920 x 1080PsF 23.98、24、25、29.97、30
■HD
1920 x 1080i 50、59.94、60
■HD
1280 x 720p 50、59.94、60
■SD
720x576i 50、59.94、60
Video Output Digital
1x 3G-SDI BNC、SMPTE-259/292/372/424
■HD
1080p 23.98 (for 23.98 video inputs)
■HD
1080p 24 (for 24 video inputs)
■HD
1080p 25 (for 50 video inputs)
■HD
1080p 29.97 (for 59.94 video inputs)
■HD
1080p 30 (for 60 video inputs)
■HD
1080p 50 (for 50 video inputs)
■HD
1080p 59.94 (for 23.98、59.94 video inputs)
■HD
1080p 60 (for 24、30 or 60 video inputs)
■HD
1080PsF 23.98 (for 23.98 video inputs)
■HD
1080PsF 24 (for 24 video inputs)
■HD
1080PsF 25 (for 50 video inputs)
■HD
1080PsF 29.97 (for 59.94 video inputs)
■HD
1080Psf 30 (for 30 or 60 video inputs)
■HD
1080i 59.94 (for 23.98、or 59.94 video inputs)
■HD
1080i 60 (for 24、30、or 60 video inputs)
■HD
1080i 50 (for 25 or 50 video inputs)
■HD
720p 50 (for 50 video inputs)
■HD
720p 59.94 (for 23.98、59.94 video inputs)
■HD
720p 60 (for 24、30、or 60 video inputs)
■SD
625i 50 (for 25 or 50 fps video inputs).
■SD
525i 59.94 (for 23.98 or 59.94 video inputs)
Reference Input
■Supported reference video inputs include:
1080i tri-level sync
1080p tri-level sync
720p tri-level sync
625i Color Black
525i Color Black
■75 ohm terminating
HDMI Output
10-bit HDMI v1.4a
Audio I/O
16-Channel embedded SDI audio input
16-Channel embedded SDI audio output
8-Channel HDMI audio output
Balanced analog audio outputs、2x 3-Pin terminal blocks connectors
User Controls
External DIP switch
openGear DashBoard network control software via Windows、macOS or Linux
Size (w x d x h)
openGear standard form factor、front slot and rear card. Two slots required for each card.
Power
openGear frame compatible、3.0 watts max per card
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3000 meters (<10000 feet)
