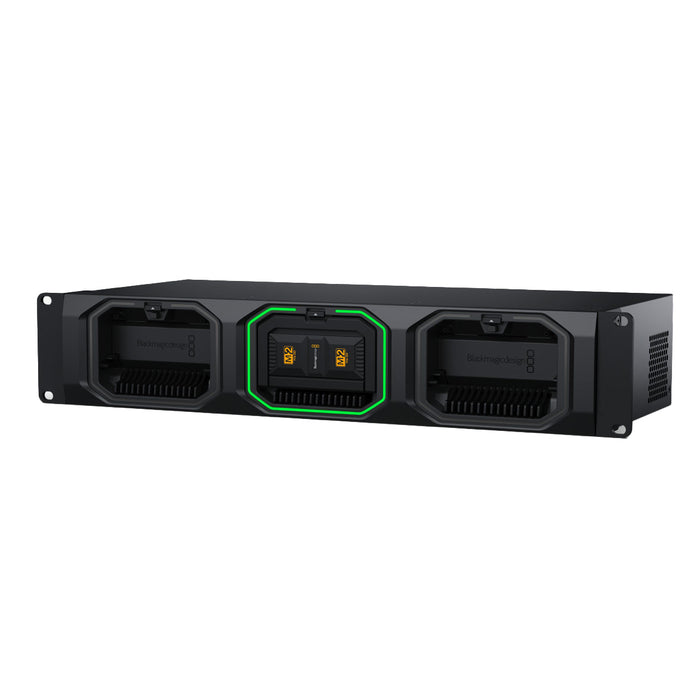

BlackmagicDesign Blackmagic Media Dock DWCLDB/DOCNMD03
【ご確認下さい】
BlackmagicDesign社の製品はシステム構築最低要件をメーカーサポートページにてご確認いただけます。
ブラックマジックデザインサポートページ
3 x removable and hot-swappable Blackmagic Media Modules.
4 x 10G BASE-T
1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
1
USB-C or Ethernet for shared file access, configuration and software updates.
SMB
50 max.
Dropbox
Google Drive
Up to 3 Blackmagic Media Modules.
Blackmagic (formatted in camera)
1080p50、1080p59.94、1080p60
Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
LED bezel indicator lights around media module bays.
USB-C or Ethernet for configuration and software updates.
Blackmagic Cloud Setup Utility
Blackmagic Proxy Generator Lite
Internal software upgrade via Blackmagic Cloud Setup using USB-C port
Mac 14.3 Sonoma
またはそれ以降のバージョン
Windows 10 64-bit
Windows 11
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
TBA
2 rack units.
0° to 40° C (32°to 104° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non-condensing
12 Month Limited Manufacturer’s Warranty.
