Acoustic & Electrical Specifications
Transducer Size (millimetres)
40
Operating Principle

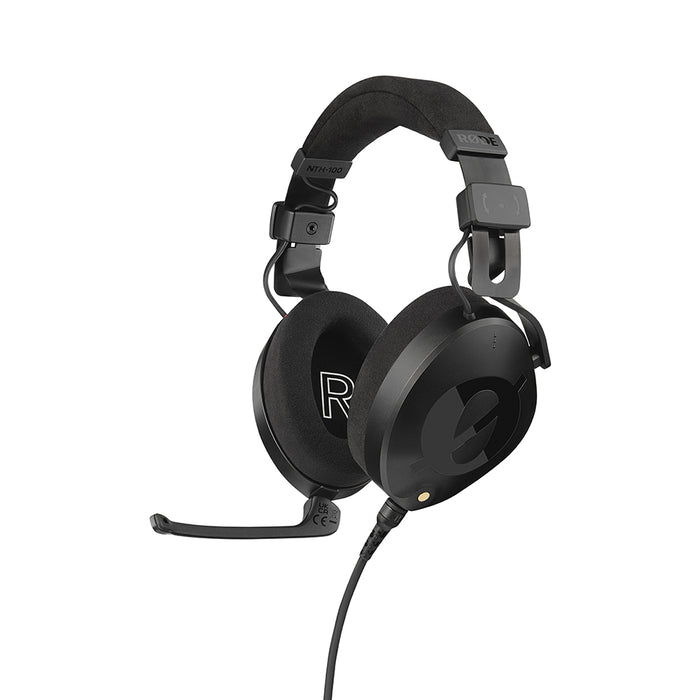

NTH-100 - Dynamic

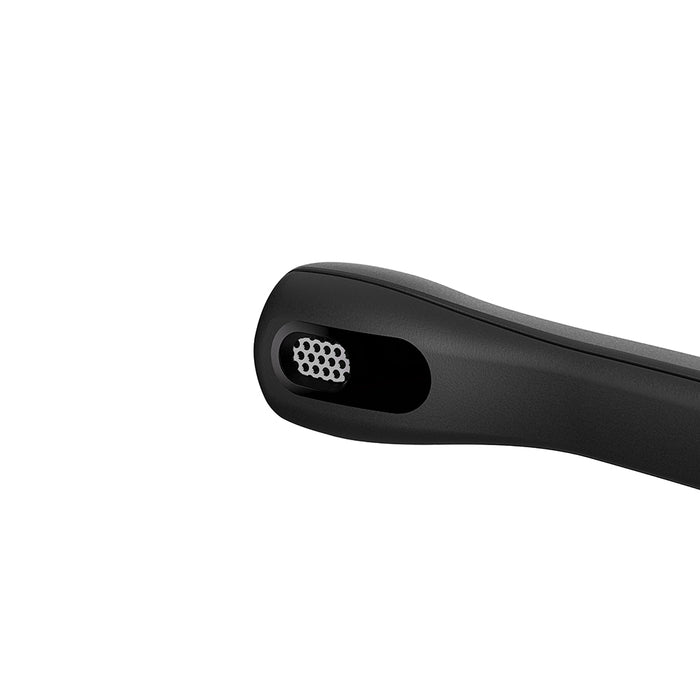

NTH-Mic - Permanently polarized
Active Electronics
JFET impedance converter
Polar Pattern
Omnidirectional
Frequency Response
NTH-100 - 5Hz – 35Khz
NTH-Mic - 20Hz - 20kHz
Signal-to-Noise Ratio
67dB
Equivalent Noise Level (A-Weighted)
27dBA Typical
Maximum SPL
106dB SPL RMS (Plug-In Power, 1% THD) 123dB SPL RMS (Plug-In Power, 10% THD)
Maximum Output Level
307mV (@ 1kHz, 10% THD into 1KΩ load)
Impedance
32Ω
Sensitivity
NTH-100 - 110dB/V
NTH-Mic - 38dB re 1 Volt/Pascal (12.59 mV @ 94 dB SPL) +/- 3 dB @ 1kHz
Maximum Input Power
1700mW, 1% THD @ 1kHz
Ear Coupling
Circumaural
Ambient Noise Attenuation
20dBA
Connection Type

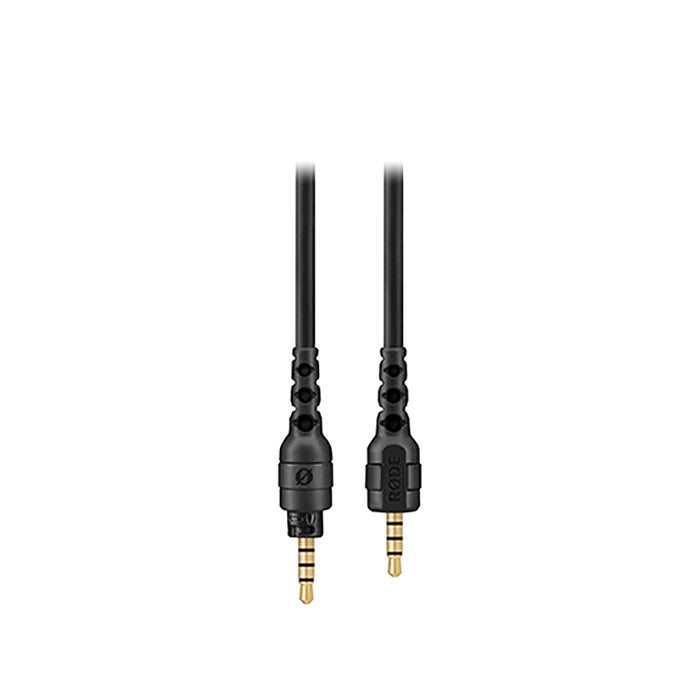

NTH-100 - Dual TRRS Cable Attachments

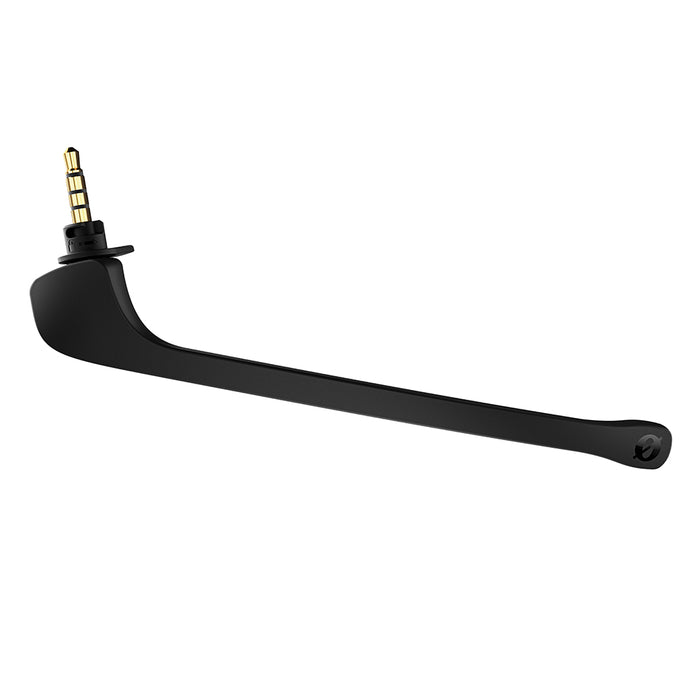

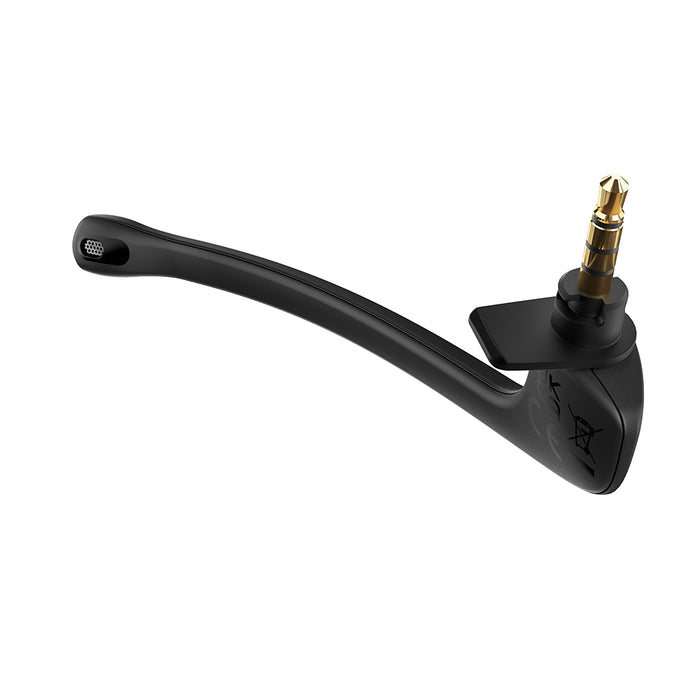

NTH-Mic - 3.5mm bayonet jack (for NTH-100)
Dynamic Range
92dB @ max input
Mechanical Specifications
Dimensions (millimetres)
NTH-100 - Length: 80 Width: 190 Height: 188
NTH-Mic - Length: 123 Height: 40 Depth: 17
Weight (grams)
NTH-100 - 350
NTH-Mic - 5
Cable Length (millimetres)
2400
